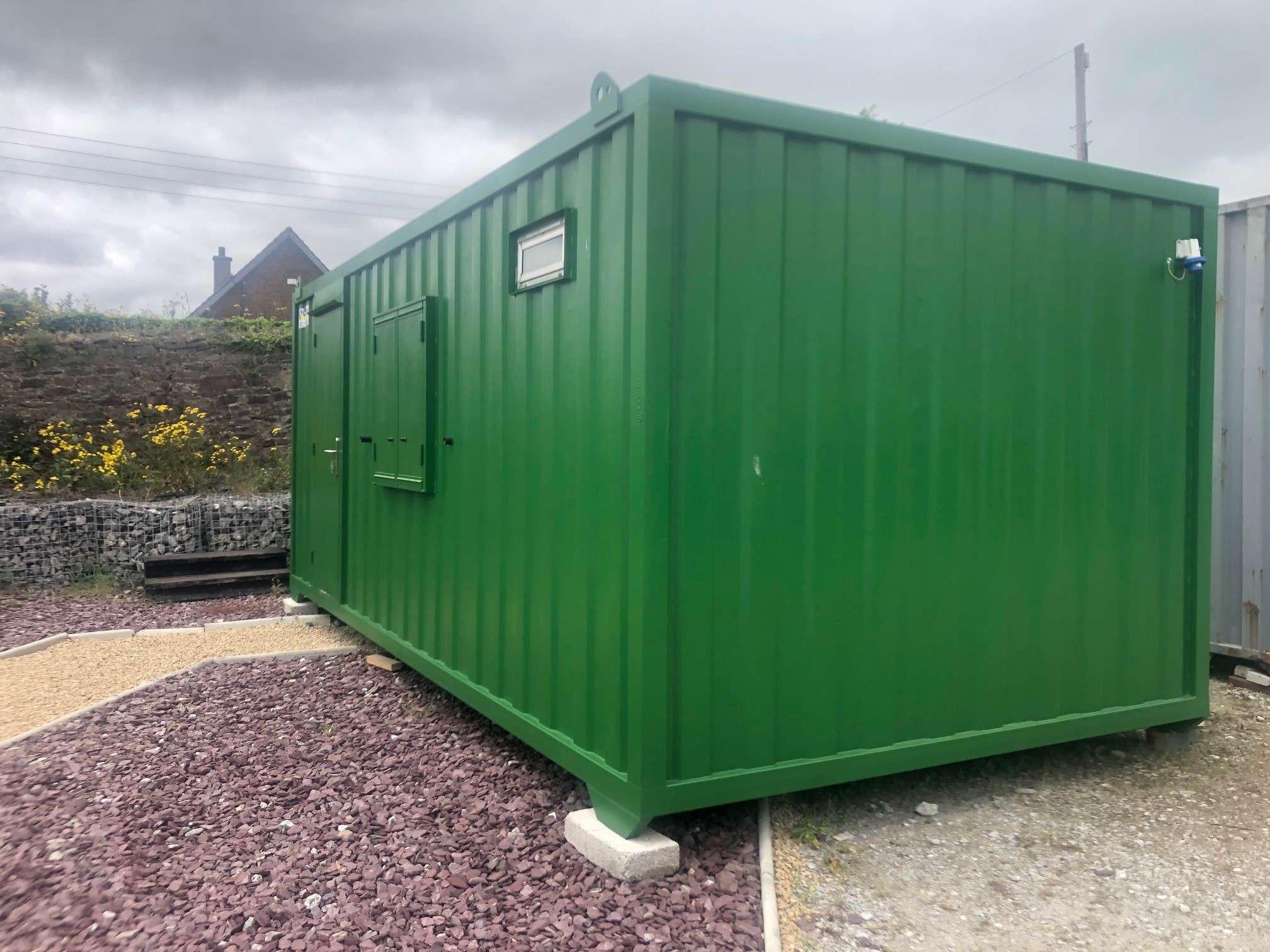

Drying Rooms – Steel Anti-Vandal Units

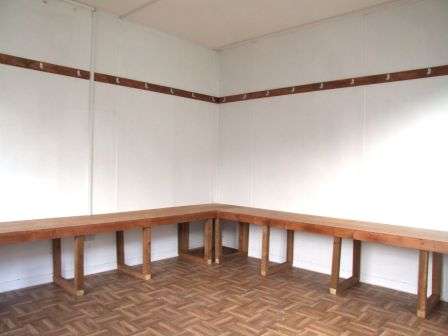

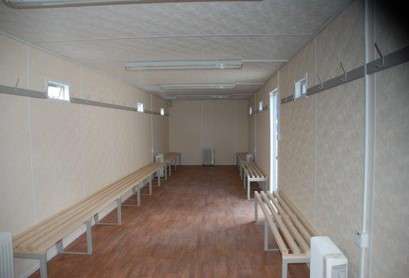

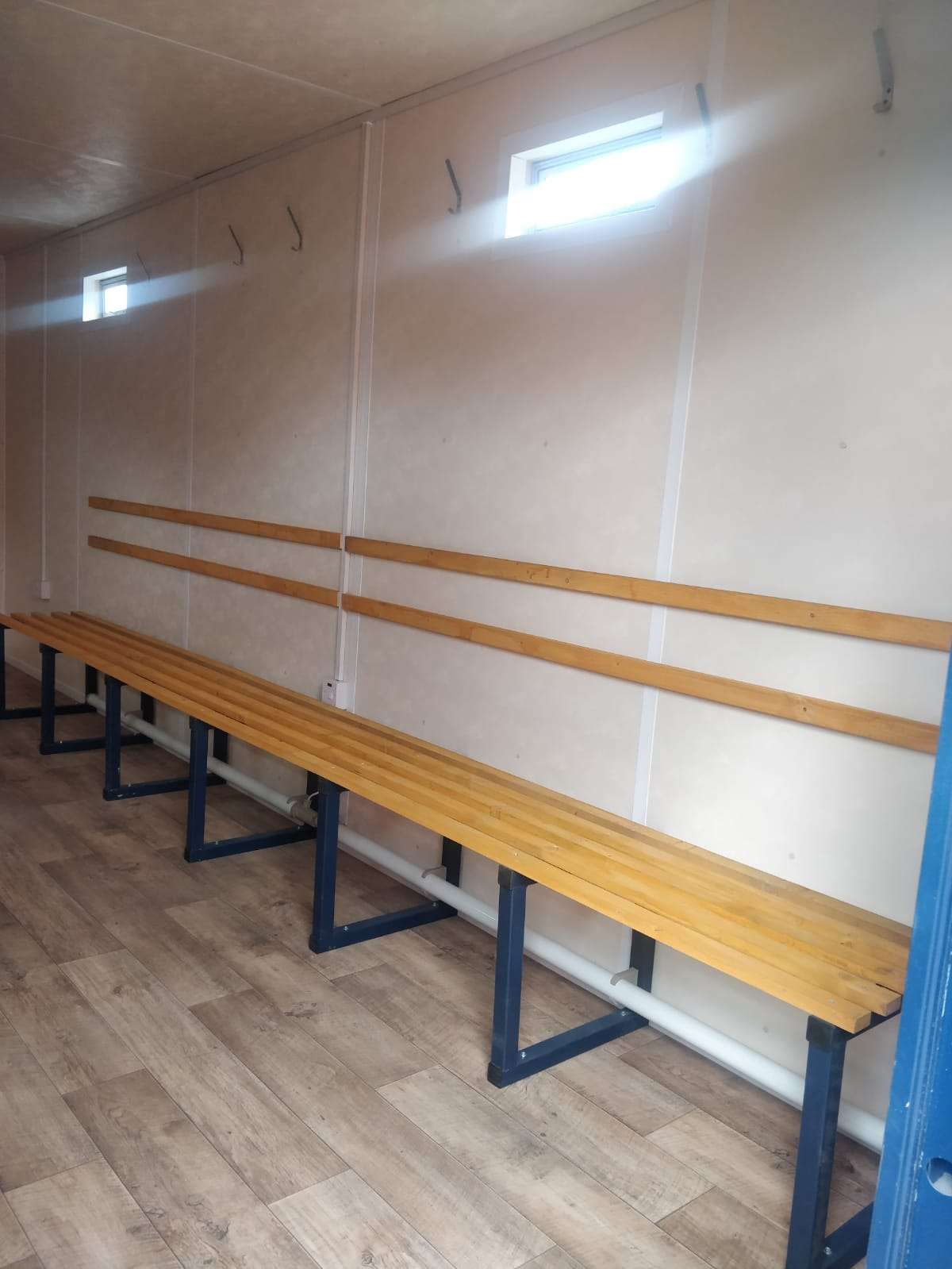

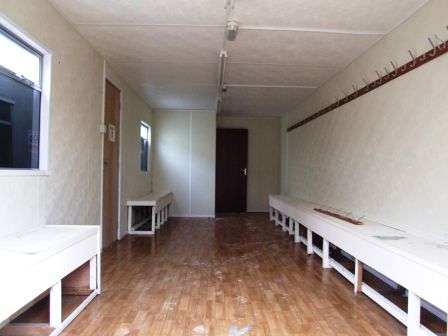

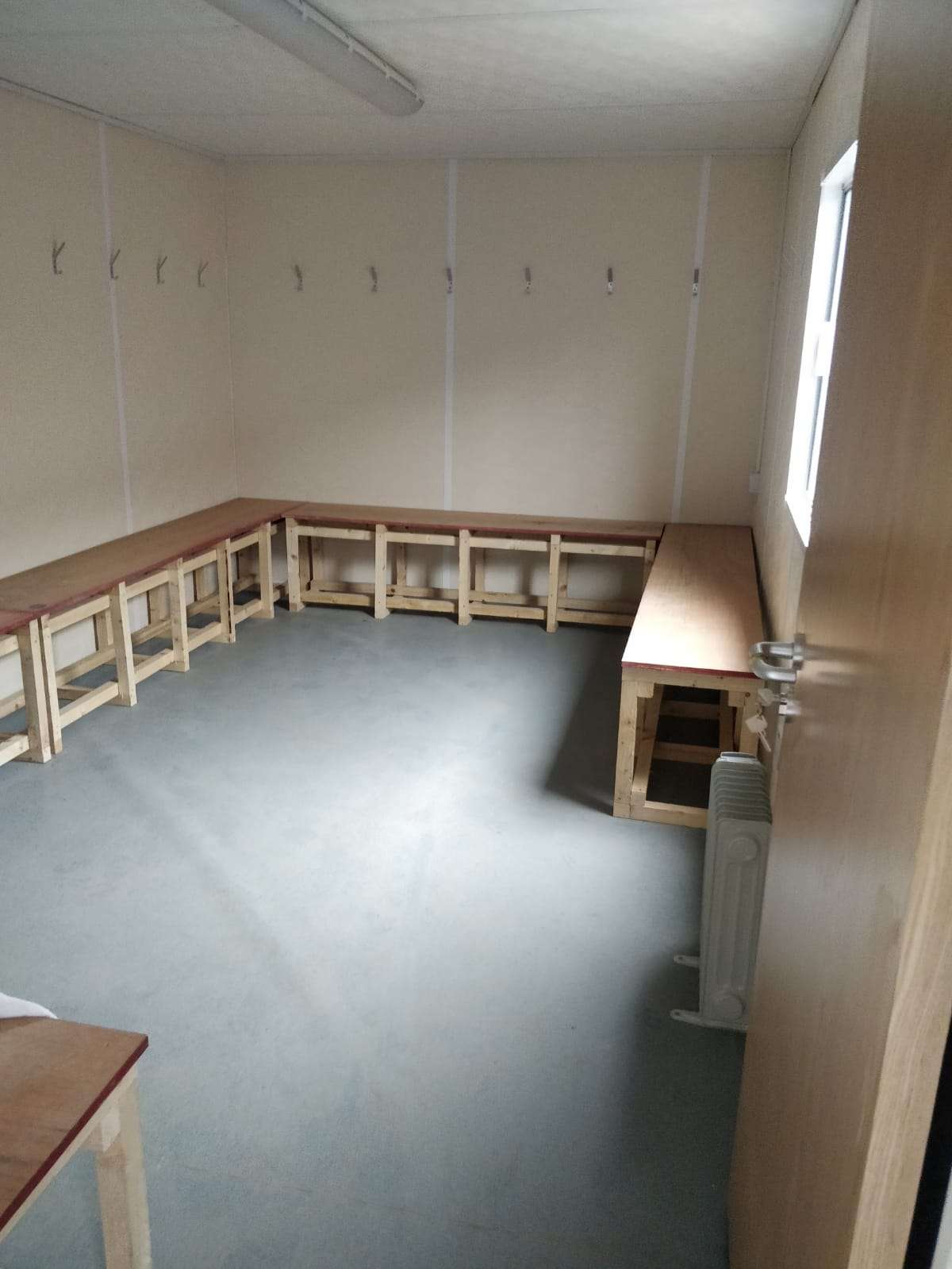

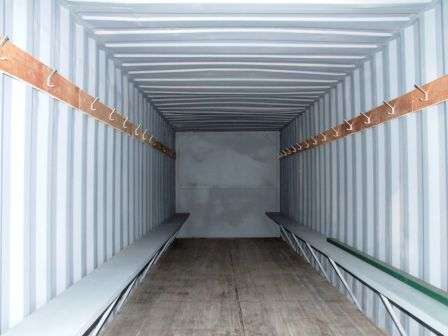

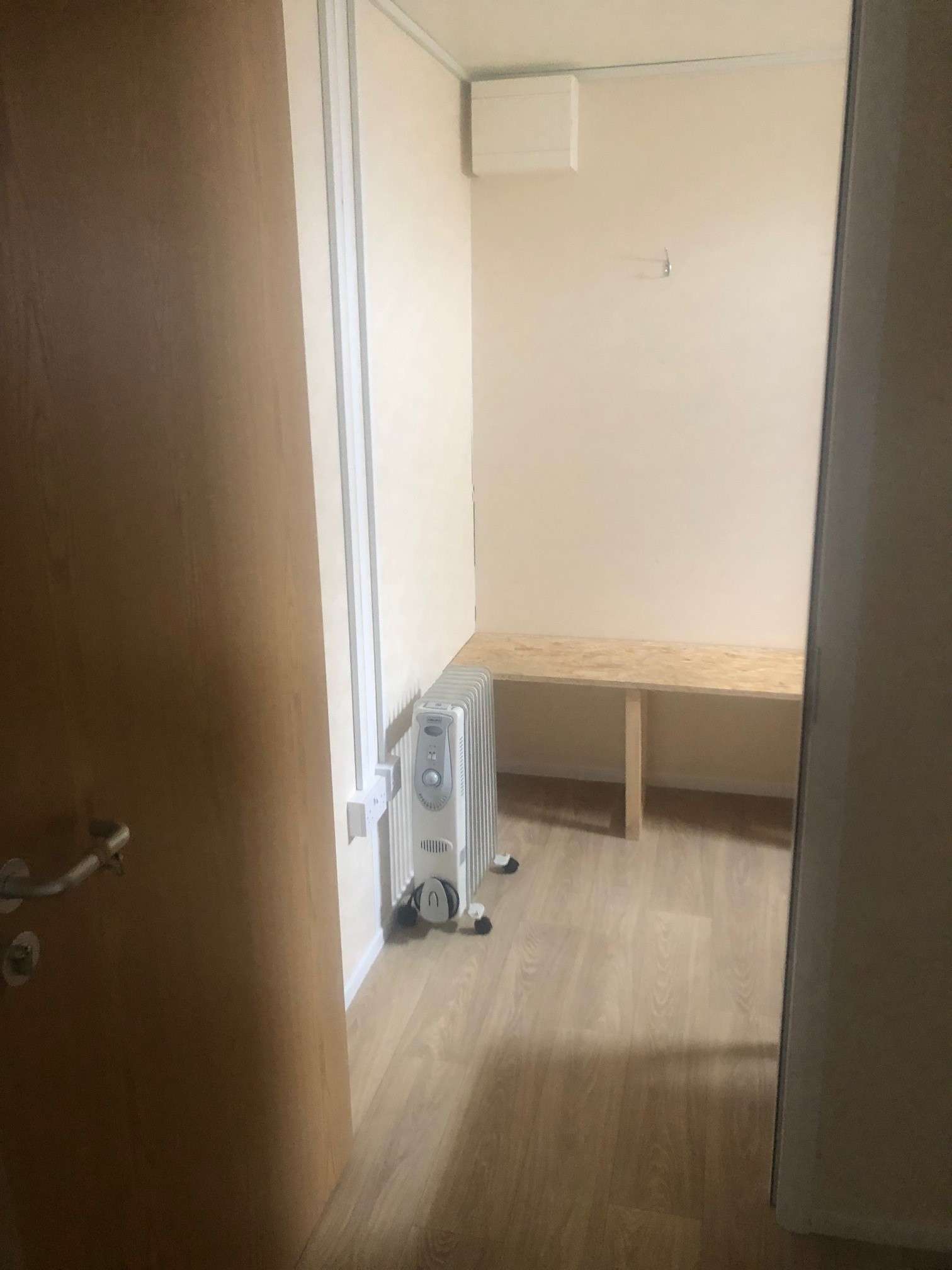

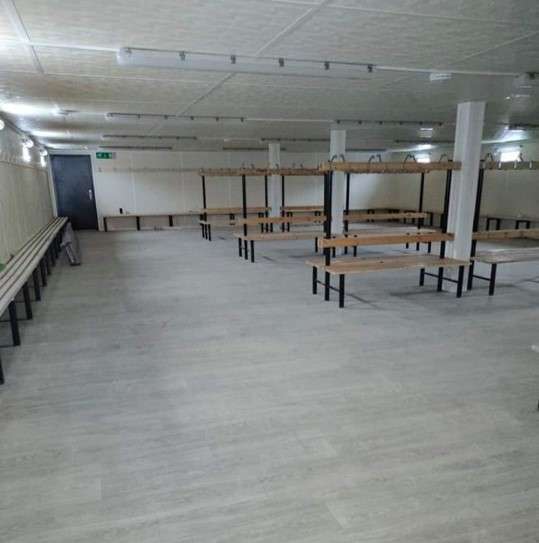

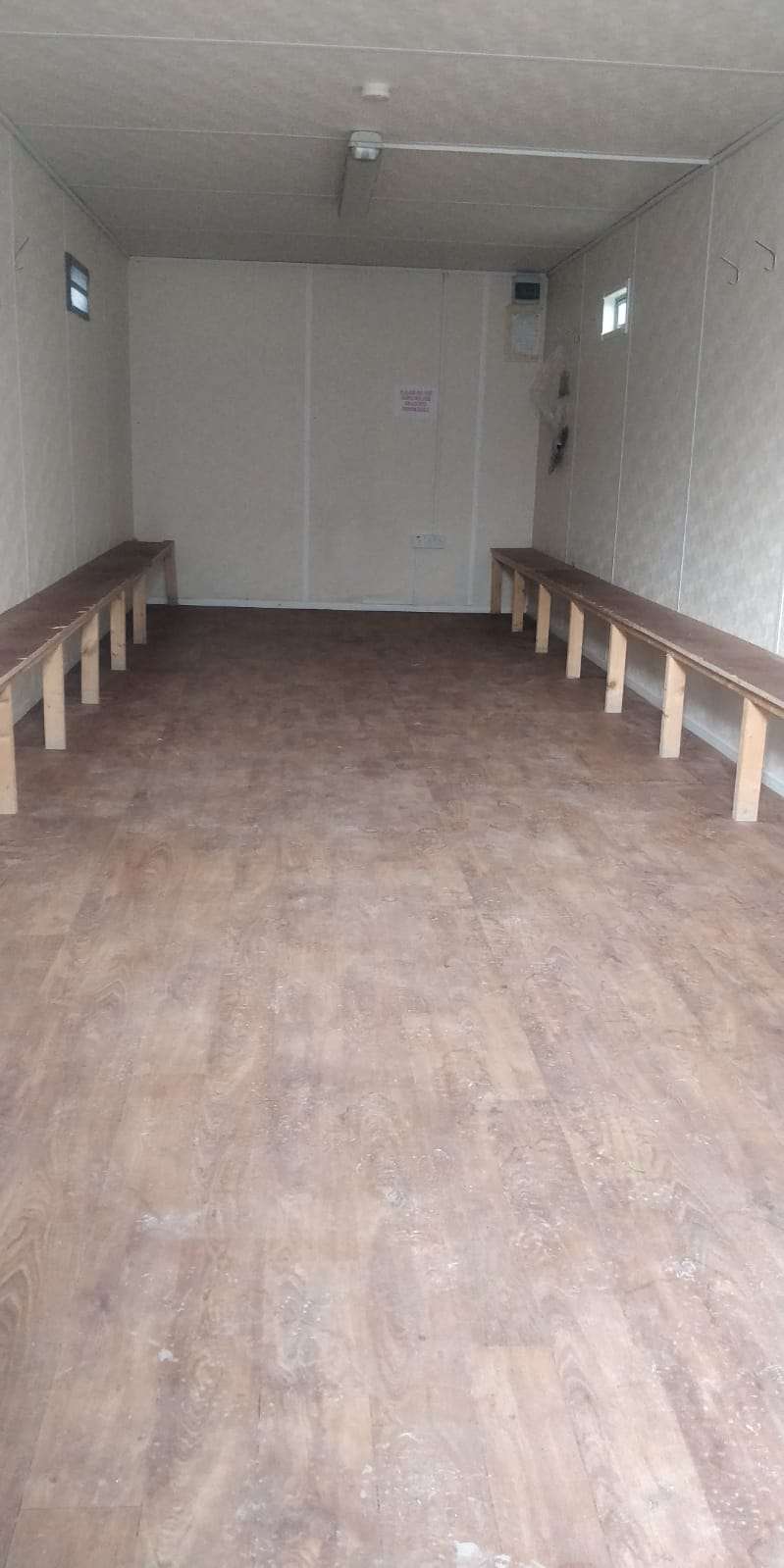

Calnan’s have a range of drying rooms in various sizes from a 10’ to a 40’ which would include the following: low level seating, coat hooks, windows for natural light, oil filled radiators, moisture proof electrics and heavy duty vinly floor covering. On request additional items can be supplied such as hot and cold running water, obscure glazing etc.

Toilet block and showers can be included in your drying room if required.

Combi Unit

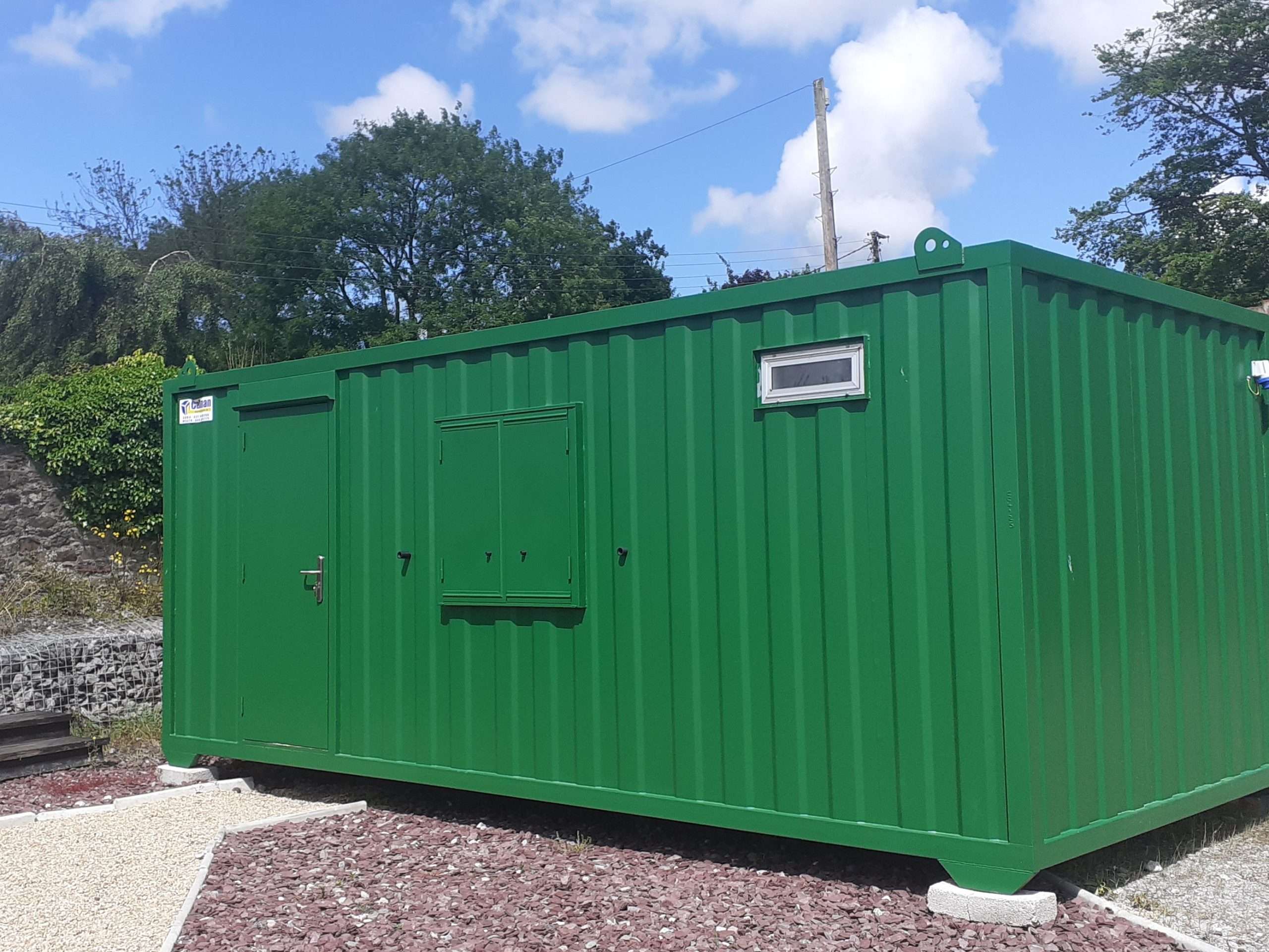

Combination Units can be built to customer specification and a typical layout can be seen below which includes the provision of stores area, generator, drying room, canteen facilities and toilets. This combi unit can stand alone at a remote site powered by mains or generator whilst providing all welfare needs. Various layouts can be catered for.

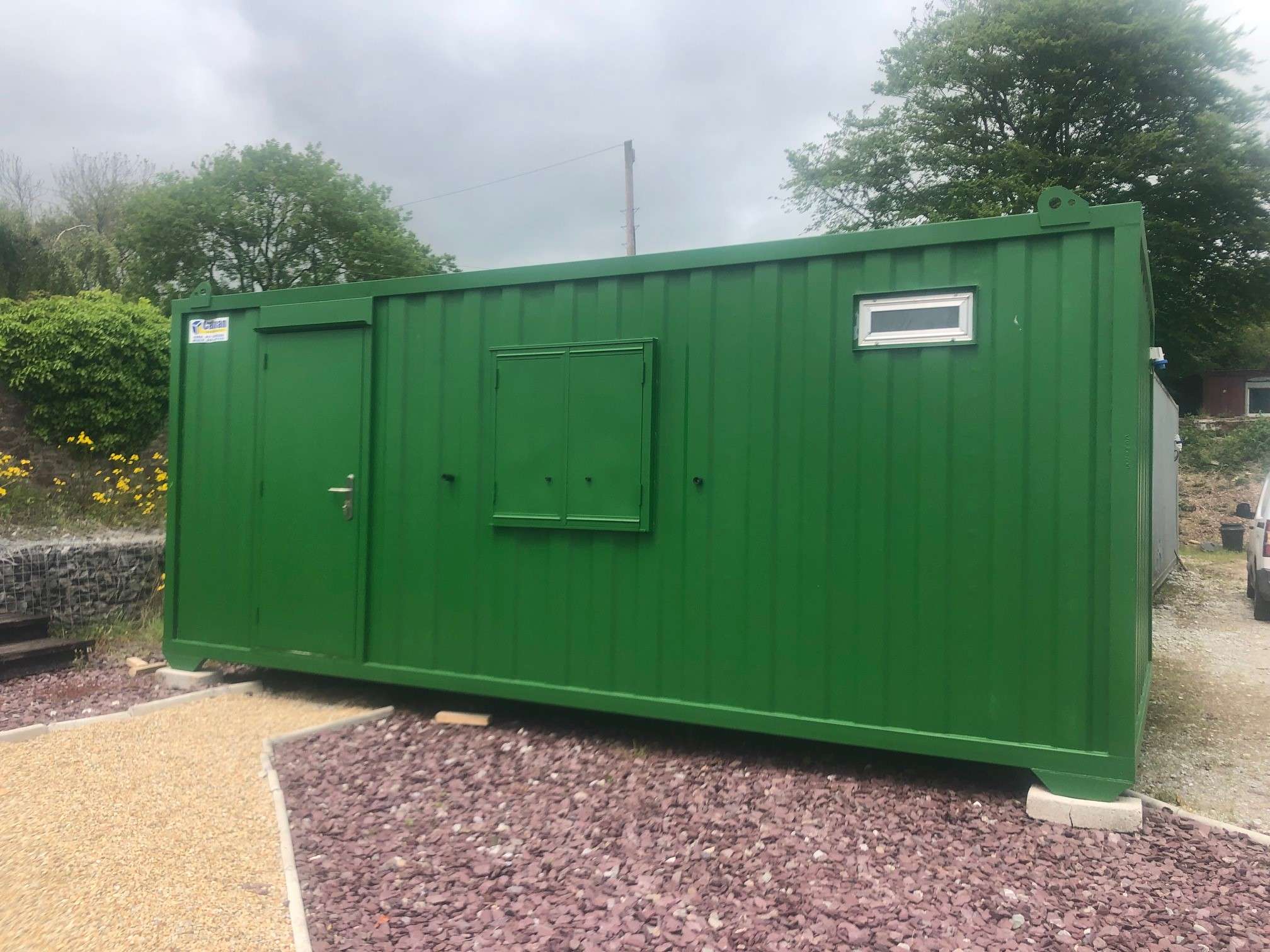

External Walls
1.6mm corrugated steel with a primed and painted finish externally.

2mm corrugated steel with a primed and painted finish externally.

Main Frame
All roof, floor & corner supports constructed from 2mm steel plate.

1065x910mm sliding aluminium frame window with steel anti vandal shutter – 1.6mm steel reinforced with 50 x 25 box section, fitted with an internal locking mechanism.

Floor Support
Steel floor runners constructed from 3mm steel located at 400mm c/c with 18mm ply floor finish internally.

Cabin is insulated throughout and finished internally with easy clean plastic coated plaster board.
